Unique conveyor system achieves accurate packing for lightweight products

A three-belt conveyor system was specially designed by YPS engineers to automate the shrink wrapping of small, lightweight e-cigarette packs.

The challenge

An e-cigarette manufacturer, based in the Home Counties, approached YPS to purchase a new shrink-wrapping line for their products.  They were looking to completely automate the bundling process at the infeed to speed up production and reduce reliance on labour.

Often, lightweight packs combined into multiple different collations could be an issue for lots of standard packaging equipment, so YPS worked closely with the customer to ensure their packing goals were achieved.

Switching to automation required total faith that the equipment would accurately collate lots of different product combinations and seal correctly every time, despite constantly changing bundle sizes.

The solution

YPS supplied a fully automatic, servo-driven L-sealer to wrap the packs, but it was the infeed conveyor arrangement that was specially designed to provide the level of speed and accuracy required.

Three infeed conveyor belts were supplied, with individually controllable speeds.  The first conveyor moved relatively slowly to allow a single operator to load the products in the correct rotation for shrink wrapping and the correct order for the desired collated packs.

A sensor located on the second conveyor would read when the final conveyor was full, with no gapping between products.  This sensor would then release the final conveyor to rotate by a programmed amount, related to the number of packs required for the current collation, and push them into the sealer for the bundle to be shrink wrapped.

Changing the line configuration for a different product collation was a simple case of changing the recipe at the intuitive operator interface.  This would change the amount of rotation for the final belt, allowing bundles of anything between two and ten products to be pushed to the sealer.

The YPS engineering team implemented an innovative system on the sealing jaw to guarantee that the lightweight, vulnerable packs would pass through the sealing process without it activating, eliminating the possibility of damage to the packs.

The automatic l-sealer controls were paired with the shrink tunnel controls so that all parameters could be accessed from the same user interface, making the equipment easy to use and ensuring full control over the wrapping operation.

The result

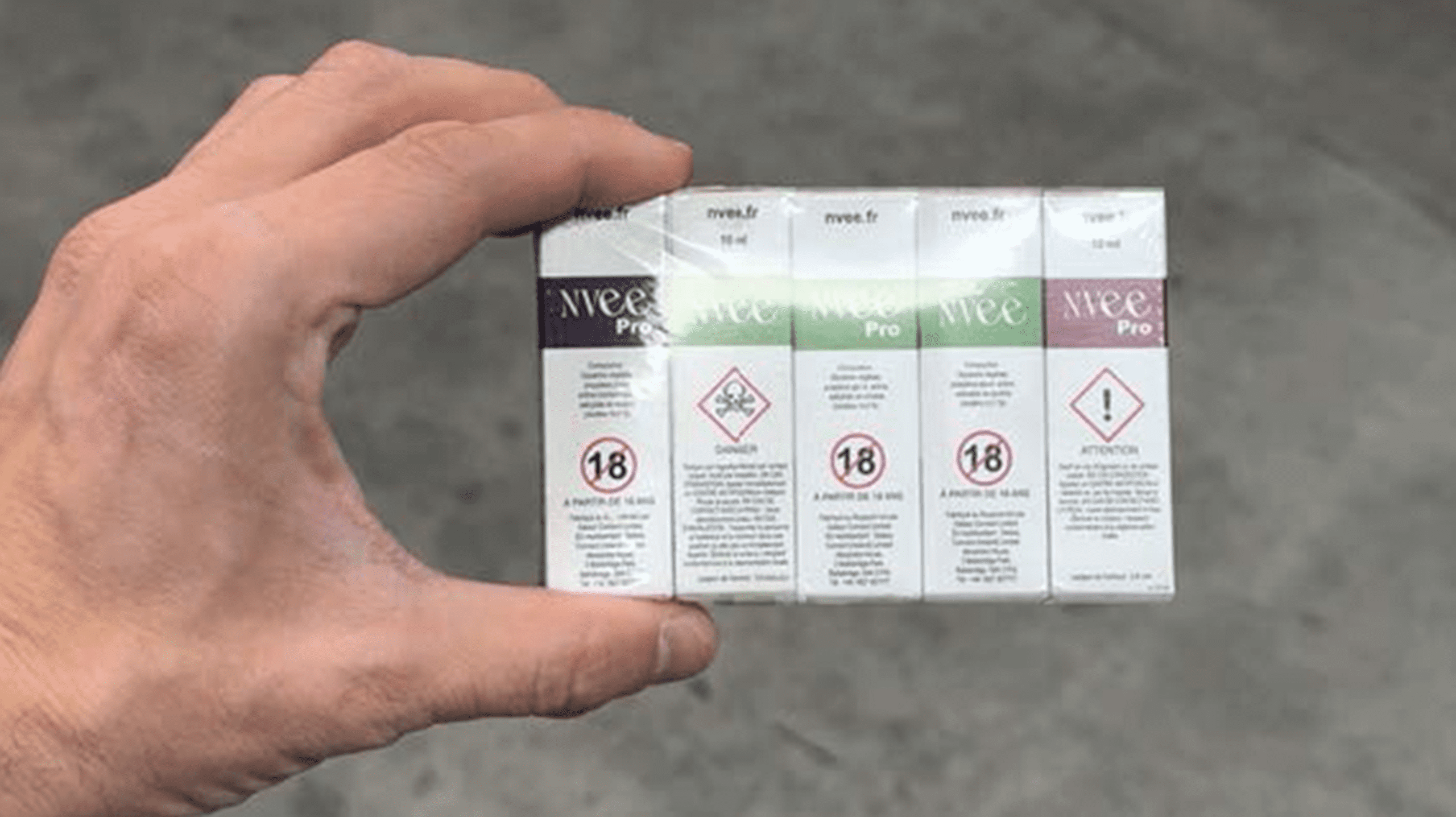

The specially configured shrink-wrapping line produced a neatly sealed product bundle each time and could be easily changed when different product collations were required.

“We look to work with our customers to understand their exact needs each time, so we can deliver a system that works precisely as they want it to,” commented Glyn Johnson, YPS’ MD.  “Our engineering team bring their experience and knowledge to any situation, however unusual, so we can find the right solution.
