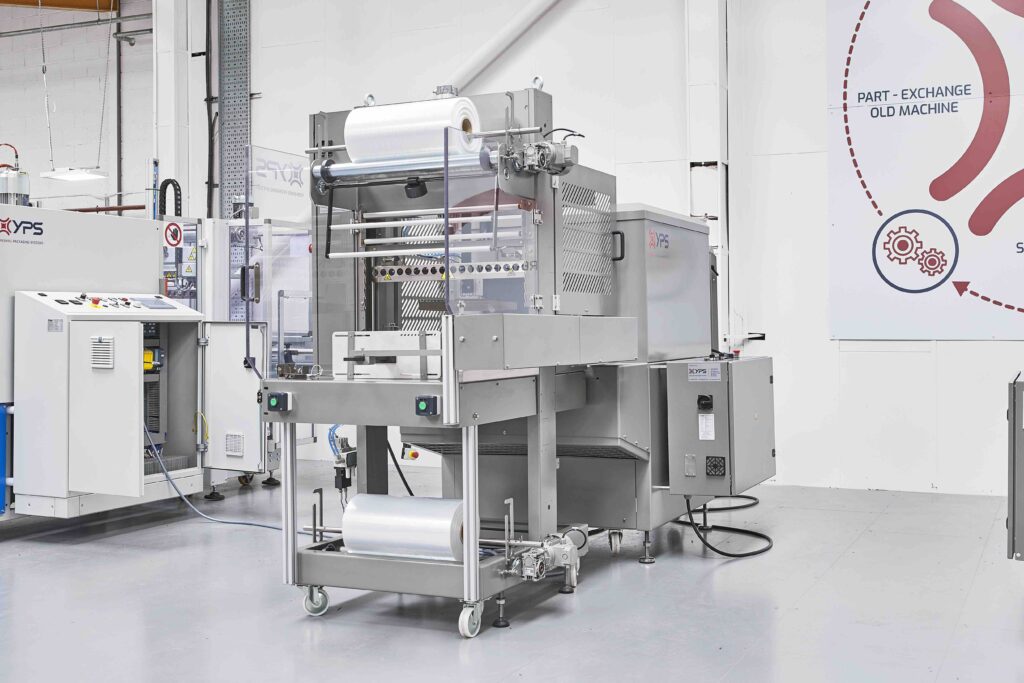

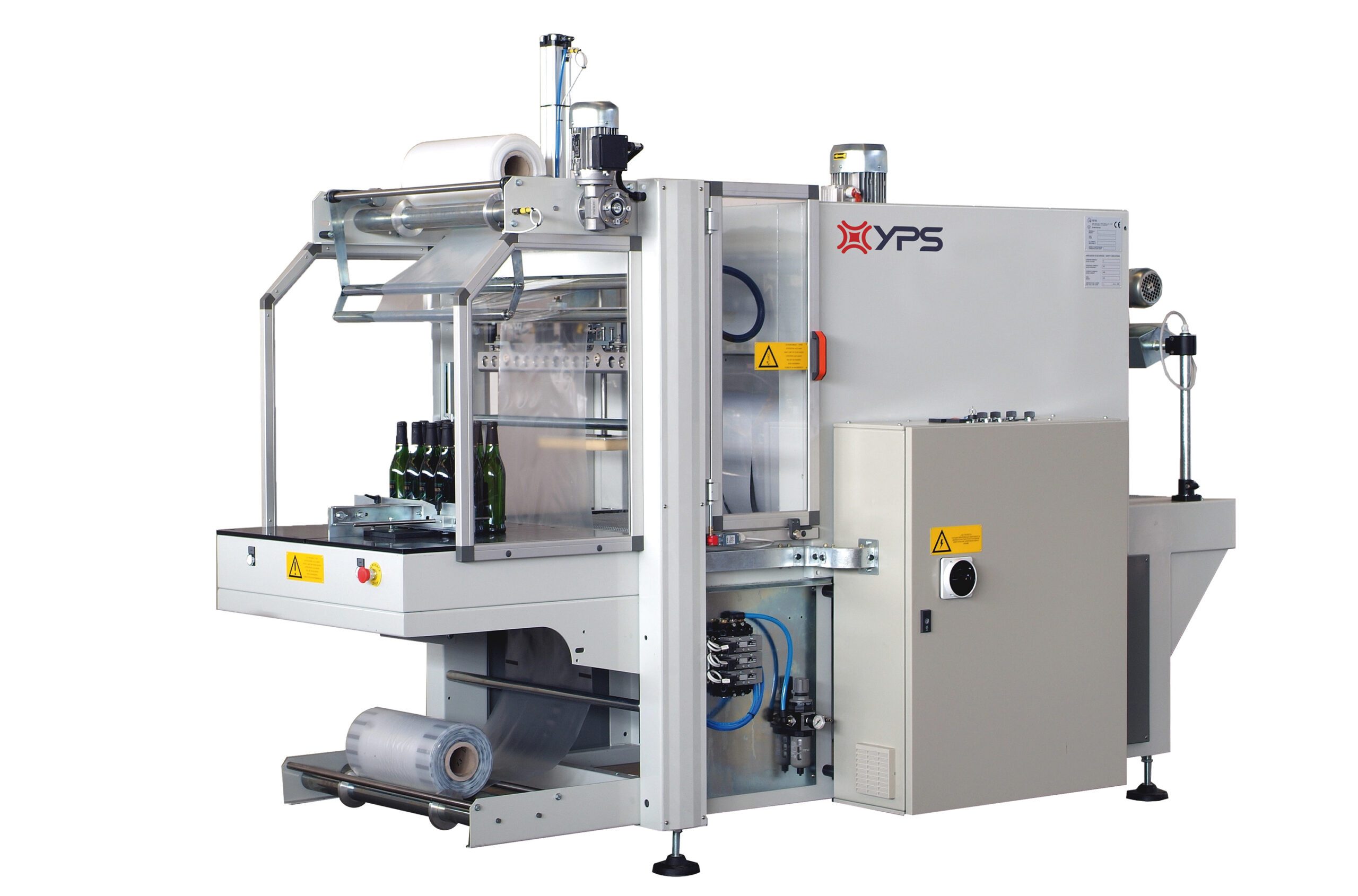

Semi Automatic Sleeve Sealer

An entry-level model offering flexibility for slower speeds and unstable products.

We would recommend a semi-automatic sleeve sealer and shrink tunnel when your shrink wrapping requirements are low production, low volume or slow speed. Additionally, semi-automatic systems are ideal for trayless or unstable product applications where flexibility is key. Choose between a 'monoblock' design or separate sealing and shrinking units depending on your long-term plans, warehouse space constraints and manoeuvrability requirements.

View our full range of shrink wrapping machines here

Request a quote

Download the brochure

45 years unrivalled service

world-leading products

award-winning customer service

tech specs

Speeds: Speeds are dependent on the operator's pace and product size but up to 15 packs per minute can be achieved with a well-prepared set-up.
Flexibility: You can run trayed or trayless packs, with or without bullseyes.
Dimensions: Available in three different widths to suit your needs - all are 1.2m long x 2.1m high. The choice of machine widths are 1.25m, 1.45m and 1.65m.
Max weight: Up to 430kg.
Power supply: Up to 5.2 amps, 4kW, 3 phase.
Service contract: Included as standard.

Key features

Flexibility and consistency

Our range of semi-automatic sleeve sealers boast a number of features designed for simple operation, operator safety and strong, robust packs.

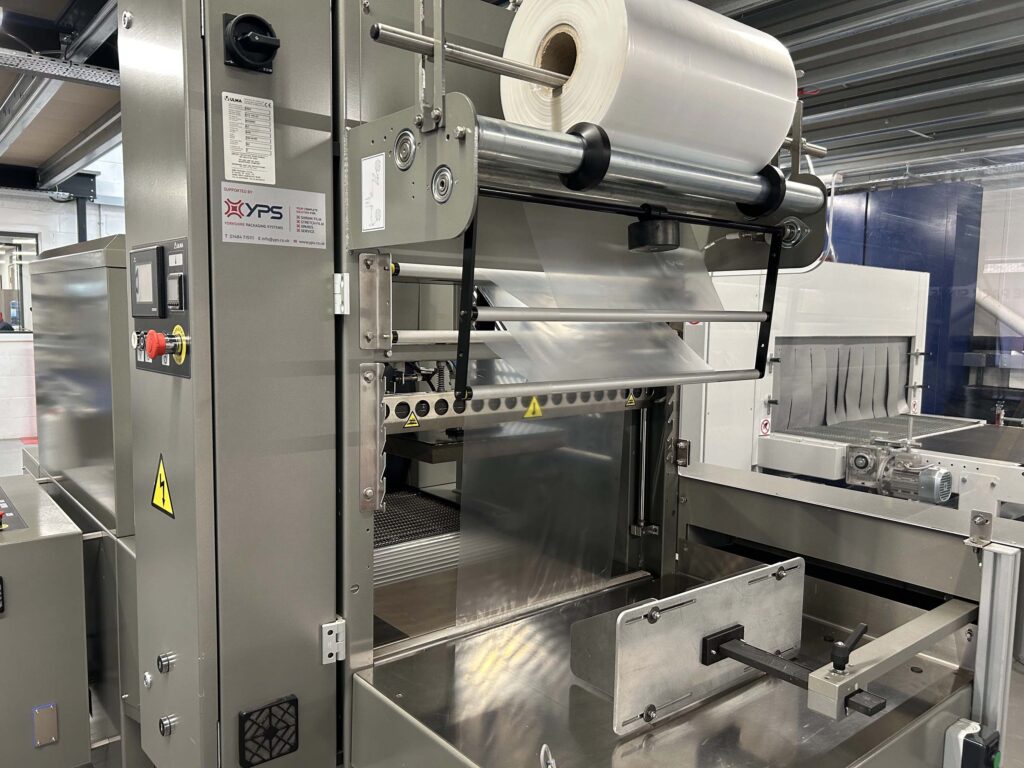

The system benefits from a specially profiled heavy-duty Teflon-coated sealing jaw, which results in very strong fin seals using polythene films for each and every pack. The jaw is also positioned with extra height clearance at the infeed, allowing for a wide variety of differently sized packs to be run. Powered film feed mechanisms guarantee speed and reliability for film threading during set-up whilst the pack clamp, which comes as standard, offers much-needed stability to precarious items without trays. For straightforward adjustments to settings on the fly, the control panel is simple and has a pre-programmable settings memory and the sealing process can be commenced with just the push of a button. An automatic run down timer and fan at the heat tunnel outfeed promotes controlled cooling for packs, allowing safe offload and interlocked guards at the sealing jaw site offer total operator protection. With a low-maintenance design and build throughout, our semi-automatic sleeve sealing systems are easy to maintain and will provide many years of trouble-free operation and high-quality shrink wrapping.

our semi automatic sleeve wrappers can wrap

Food & Beverage

collations

products in sacks

trayed items

pet food

labels

features

Monoblock or separate units

Our semi-automatic sleeve sealing systems are available as either separate units - sealer and tunnel - or as combined 'monoblock' machines. Both systems offer significant advantages and the choice is primarily determined by your needs.

Monoblock systems can be easily manoeuvred around your warehouse, save space and reduce the machine build costs. However, they can suffer some performance compromises as the shrink tunnel conveyor belt is situated very close to the sealing jaw. As the shrink film is sealed around the pack, the shrink tunnel belt has to stop to ensure that the heat shrink pack is stationary during this process. The packs that have previously been shrink-wrapped are inside the tunnel during the pause cycle. This means that the amount of time each pack is inside the shrink tunnel can vary, depending upon the item being shrink-wrapped through the heat sealer at the time. This leads to inconsistent results out of the tunnel, with some packs under shrunk and some potentially with burn holes in the film. To combat this, our system ensures the sleeve wrapper and tunnel are entirely independent of each other so that each pack spends exactly the same amount of time inside the shrink tunnel, ensuring consistency with the heat shrink sleeve pack.

Utilising separate units allows for a very easy and cost-effective upgrade path should your volumes or production requirements change. YPS will happily trade in any semi-automatic sleeve sealer against a faster, automatic sealer in order to increase production with minimum disruption. The shrink tunnel would not need changing.

See our shrink tunnels

Craig Gudgeon, Alpha Feeds

"We recently purchased a semi-automatic sleeve sealer and tunnel. We did a lot of research before ordering and spoke with several suppliers. However, the YPS equipment far outstripped that of the competition, mainly because of the simple and intuitive controls of the machinery compared to all the other models we saw. The way the machine has run since has left us confident that we made the right choice."

HERE FOR YOU

AFTER-SALES SUPPORT

We’re proud to say that over 45 per cent of our machinery business each year originates from returning customers who have been delighted with both the machine they received and the first-class support offered.

We are unique within the industry for providing a service contract free of charge with every machine supplied, offering you extra peace of mind.

service contracts

book a showroom visit

If you’re considering a investment in new technology, come and visit our showroom in Yorkshire and see our machines in action. Our friendly team will be on hand to discuss any aspects of your project and answer any questions.

Find out more
